growing-pipe-hole-cover-1

Description

Covers currently unused holes in a horizontal growing pipe.

Images

Overview

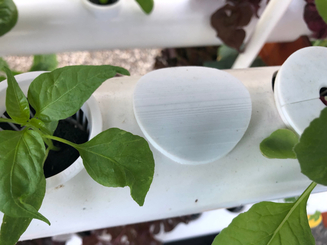

This is an entirely optional part, and you can solve the problem differently with some kind of flap. This is a 3D-printed part that covers unused holes in a horizontal growing pipe and thus prevents algae from growing.

We provide two models:

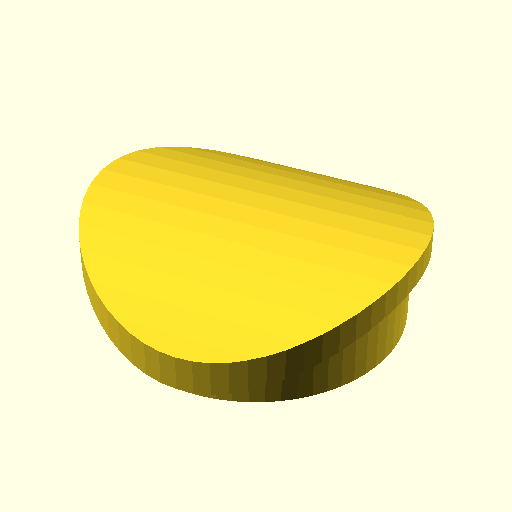

• The normal hole cover
• The same hole cover, but with straight trim on one side, as if cut off with a saw. This is useful if for some reason, your to-be-covered hole is too close to the growing pipe’s end cap.

Bill of materials

• Food-safe 3D printing filament

Required tools

• 3D Printer

• PC running OpenSCAD.

• PC running a slicing program suitable for your 3D printer, such as Slic3r.

Construction

• Download one of the OpenSCAD models, depending on the size and shape you want:

  • growing-pipe-hole-cover.scad is the default, and
  • growing-pipe-hole-cover-with-cutoff.scad is the version that is cut off. You may need to edit this file to change the location of the cutoff to match your requirements

• Alternatively, if you are familiar with git and have it installed, clone the entire Project Springtime website from here and look for the .scad files in content/parts/growing-pipe-hole-cover-1/cad.

• In OpenSCAD, open this .scad file you want and and select "Design/Render (F6)".

• In OpenSCAD, export as STL.

• In your slicer, place the previously exported STL file.

• In your slicer, you can probably use default parameters for your printer. (You know your printer better than we do.)

• In your slicer, export the G-Code and print the G-Code with your 3D printer.
