pot-holder-1

https://www.project-springtime.org/parts/pot-holder-1/

Description

Helps keep the net pot upright.

Images

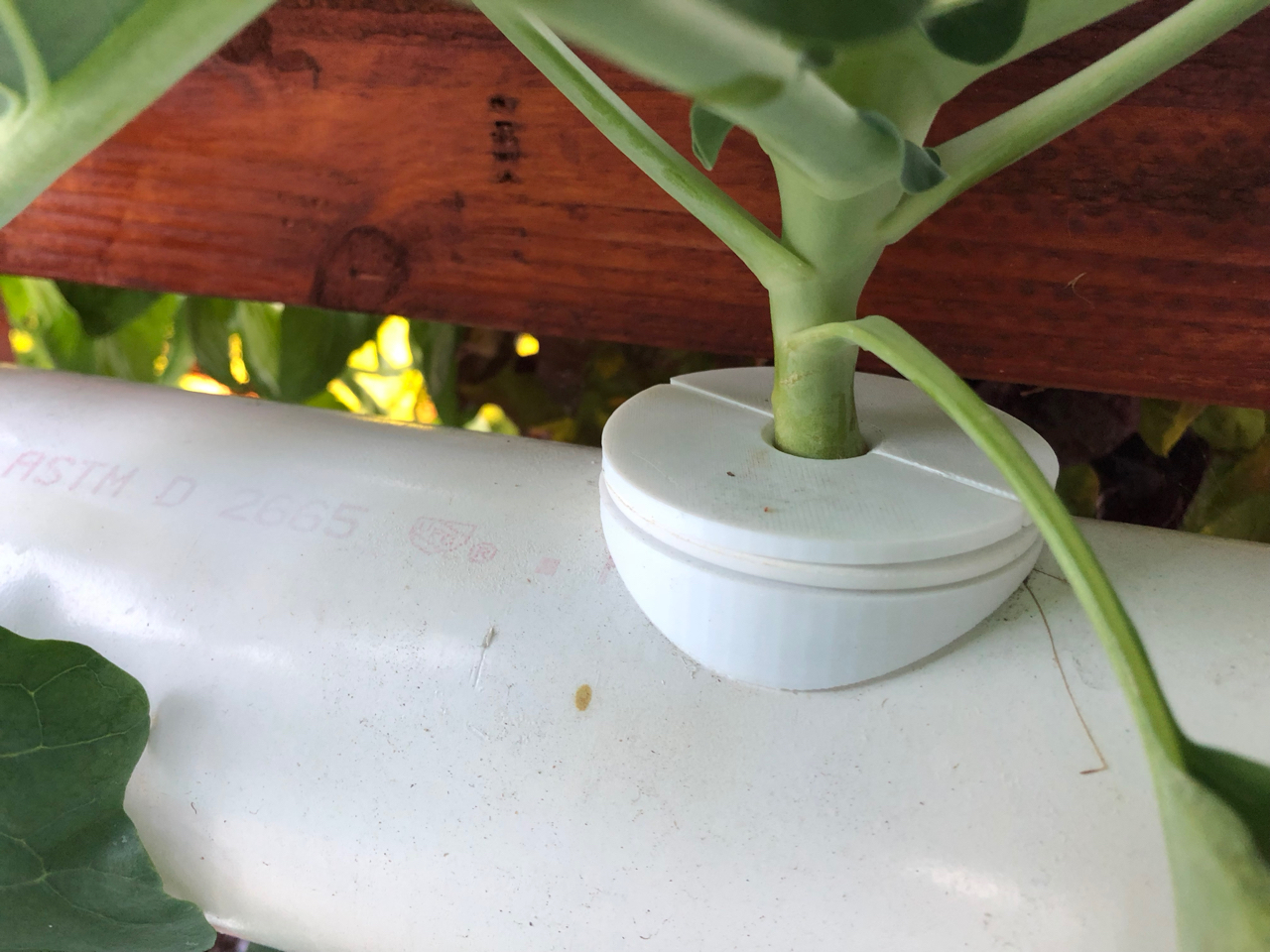

Pot holder with plant holder

Pot holder with plant holder

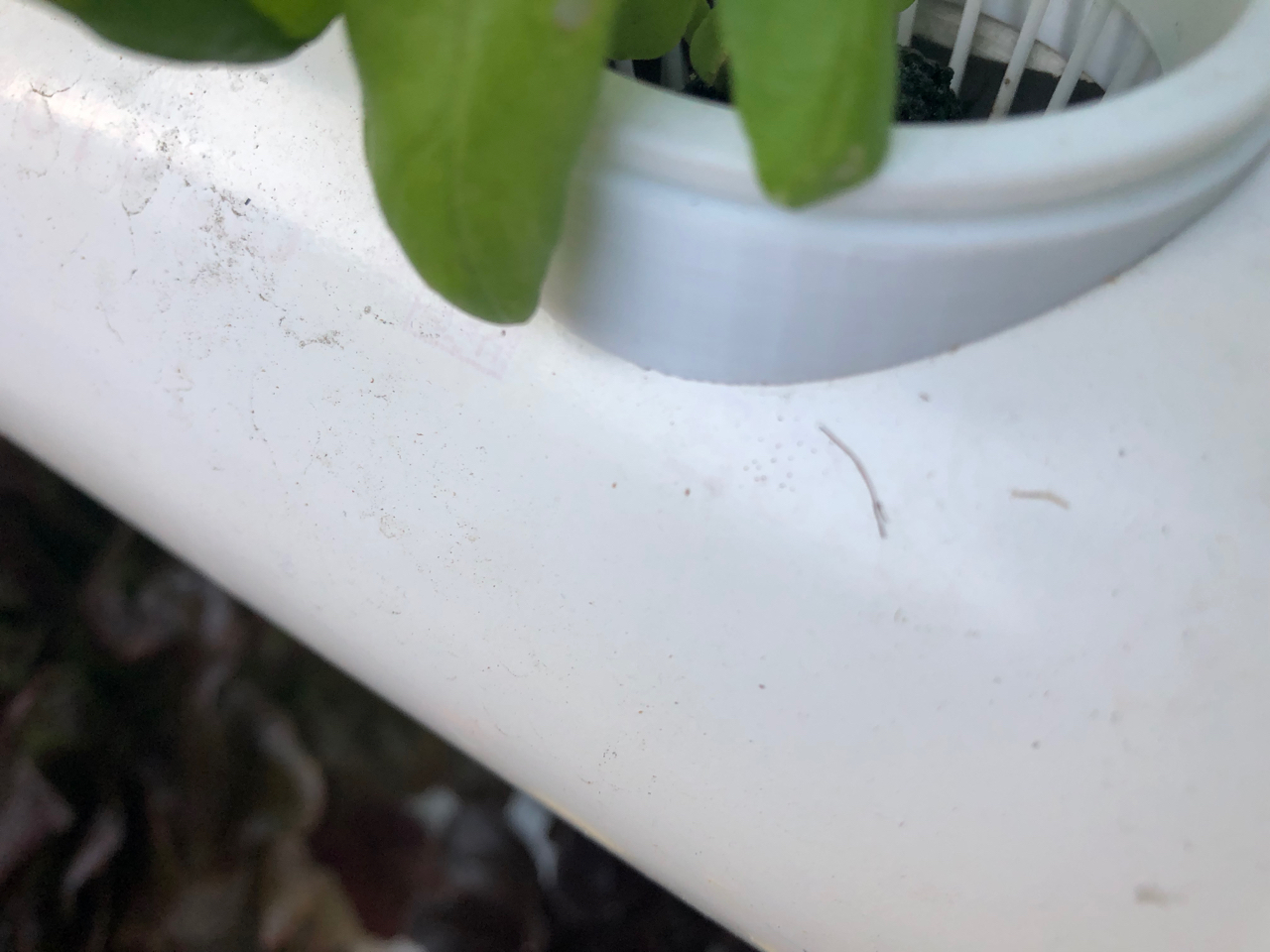

Pot holder without plant holder

Pot holder without plant holder

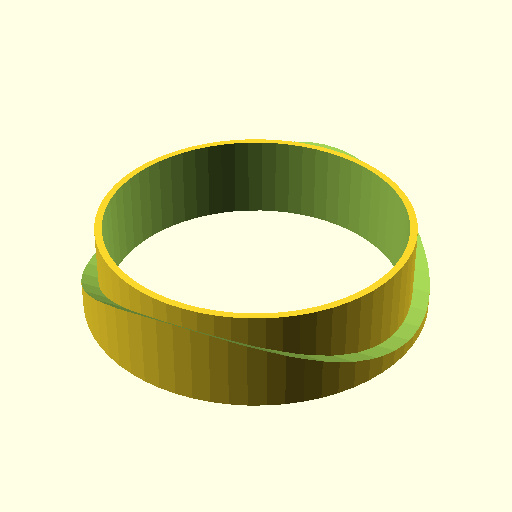

Pot holder

Pot holder

Overview

This entirely optional 3D-printed part keeps the net pot from “rolling” on the round growing pipe. This may otherwise happen if the plant is tall and top-heavy.

Bill of materials

  • Food-safe 3D printing filament

Required tools

  • 3D Printer

  • PC running OpenSCAD.

  • PC running a slicing program suitable for your 3D printer, such as Slic3r.

Construction

  • Download the following OpenSCAD models:

  • Alternatively, if you are familiar with git and have it installed, clone the entire Project Springtime website from here and look for the .scad files in content/parts/pot-holder-1/cad.

  • In OpenSCAD, open each .scad file at a time and select "Design/Render (F6)".

  • In OpenSCAD, export each file as STL.

  • In your slicer, place the previously exported STL file. We suggest you slice and then print one file at a time.

  • In your slicer, you can probably use default parameters for your printer. (You know your printer better than we do.)

  • In your slicer, export the G-Code and print the G-Code with your 3D printer.
