plant-holder-3

Description

Helps taller and heavier plants stand up and not topple over.

See also plant-holder-1 and plant-holder-2.

Images

Overview

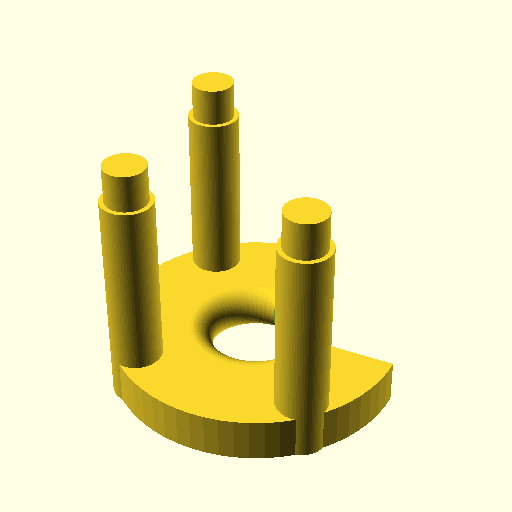

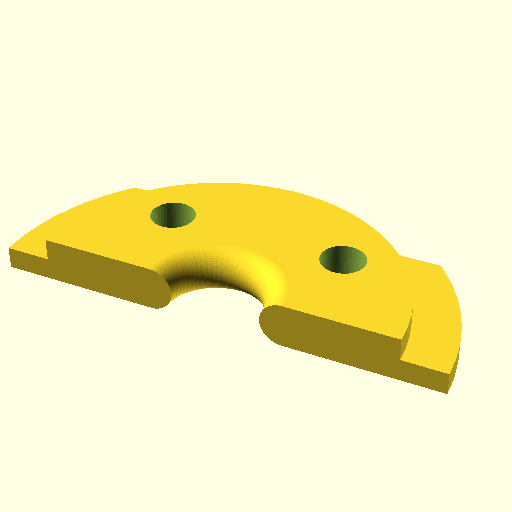

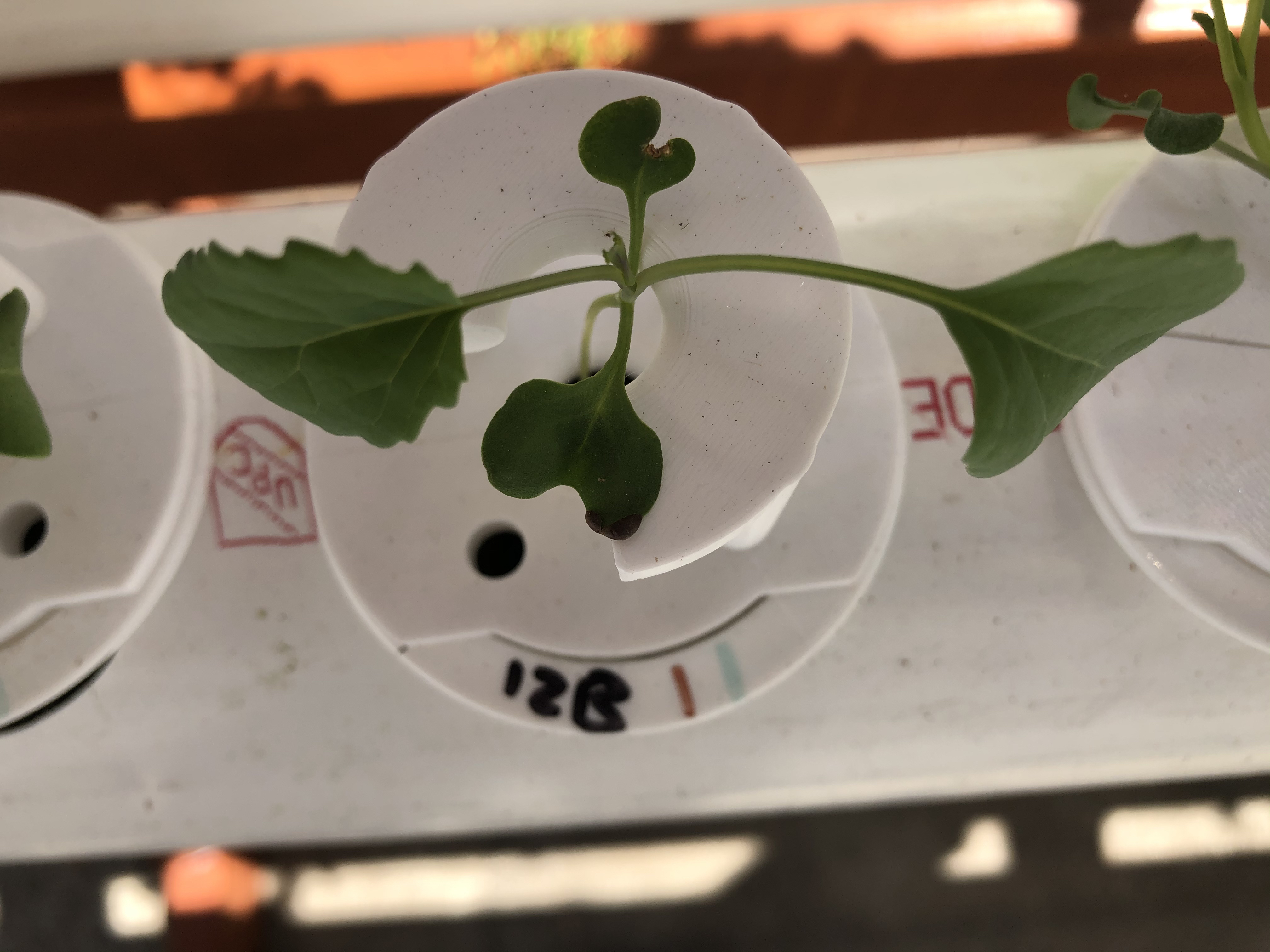

This entirely optional 3D-printed part (which comes in three pieces) is used to help taller, and top-heavy plants to not topple over. This may happen because the growing cubes are not particularly stable in the net pots, and the plant may not have managed to hold on to the net pot very well.

The top piece leaves out a 90 degree gap. Most plants only lead to one side, so turn the piece accordingly.

Bill of materials

  • Food-safe 3D printing filament

Required tools

  • 3D Printer

  • PC running OpenSCAD.

  • PC running a slicing program suitable for your 3D printer, such as Slic3r.

Construction

  • Download the OpenSCAD model from here.

  • Alternatively, if you are familiar with git and have it installed, clone the entire Project Springtime website from here and look for file content/parts/plant-holder-3/cad/plant-holder.scad.

  • In OpenSCAD, open this .scad file you want and and select "Design/Render (F6)".

  • In OpenSCAD, export as STL.

  • In your slicer, place the previously exported STL file.

  • In your slicer, you can probably use default parameters for your printer. (You know your printer better than we do.)

  • In your slicer, export the G-Code and print the G-Code with your 3D printer.
